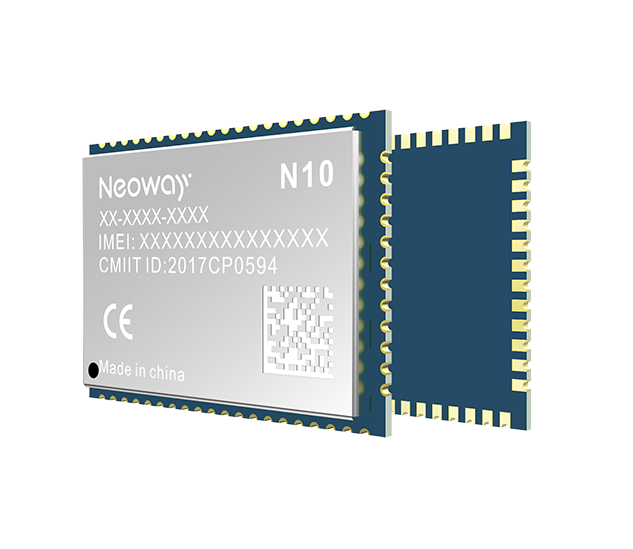

N10

N10 is an ultra-small industrial-grade GPRS module that supports eSIM cards. It adopts 64-pin LCC package, and its dimensions are only 23.5 mm x 17.0 mm x 2.2 mm. The module provides rich data services. With industrial-grade low power consumption and EMI performance, it is widely used in harsh environments.

Ask a Question Document Download

Product Features

Voice & Data

eSIM optional

Extensible memory

Various Interfaces

-40℃ to 85℃

Specifications

Supply voltage	3.3 V to 4.3 V, Typ.: 3.9 V
Dimensions	23.5 mm x 17.0 mm x 2.2 mm
Package	64-pin LCC
Interface	MIC x 1,SPK x 1 ADC x 1 UART x 1 USB 2.0 PWRKEY_N RESET_N DTR (sleep mode control) NET_LIGHT USIM (1.8 V / 3.0 V) 5 x 6 SIM (Optional)
Frequency bands	GSM/GPRS: 850/900/1800/1900 MHz
Protocol	TCP/UDP/TLS/MQTT/DNS/FTP/HTTP/HTTPS/NTP
ESD	VBAT: ±8 kV / ±15 kV GND: ±8 kV / ±15 kV ANT: ±8 kV / ±15 kV Other: ±4 kV / ±8 kV
Region	Global
